DETAIL:
●Quick and Easy Ku- to Ka-band Conversion.
●Adopting motor direct drive and three-axis stabilization system for high reliability.
●Utilizing hat-shaped feed design for higher efficiency and better side lobe characteristics.
●Fast initial pointing time to satellite: GPS/BD module cold start positioning time to satellite<80s, hot start (or manual input) <60s.
●High tracking accuracy: tracking error <0.5dB (RMS) without occlusion.
●Excellent Tracking Stability: The azimuth adopts a closed-loop stability algorithm, which canaccurately track the satellite even during rapid turning or "S" move.
●Fast occlusion recovery time: Occlusion time <5min, recovery time <3s; Occlusion time<20min, recovery time <5s.
●Rapid satellite switching: switching time between different satellites<8s.
●Easy to operate: It can achieve dynamic satellite alignment, dynamic satellite switching, andother functions during move.
●Standardized modular components: system modular design, simple interface specification,convenient fault diagnosis and maintenance.

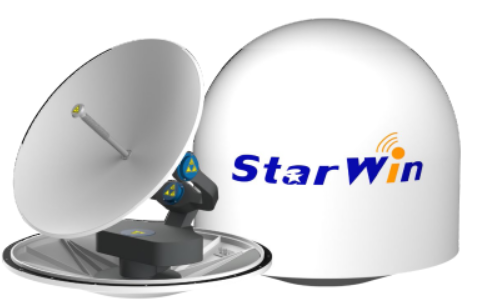

DATASHEET:Starwin 0.8m Ku/Ka Band Maritime Antenna
Starwin 0.8m Ku/Ka Band Maritime Antenna Datasheet
