BRIEF INTRODUCTION:

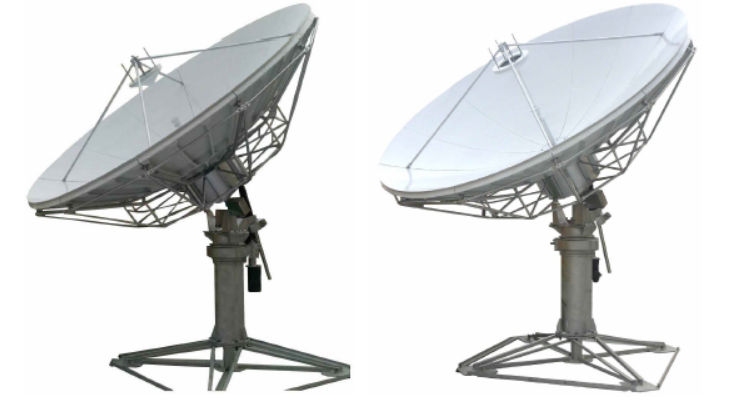

Starwin 3.7 m Ka band ring focus antenna is designed for Ka band transmit and receive operation.
The precision aluminum reflector is constructed with stretch formed double coated 12 panels, strong back structures and hub, free of field alignment.
The standard designed azimuth over elevation king post pedestal provides a cost-effective solution for ground or roof installation with high stiffness and stability, wide Az&El moving range and fine drive performance, ensure the pointing and tracking accuracy.
Also supplied with limit switches, foundation hardware kit and required packing.
DETAIL:
●Meets or exceeds CCIR 580 and INTELSAT Requirements
●Motorized and tracking available
●Precision compression molded ring focus reflector
●CP/LP switchable feed
●Hot dip zinc steel pedestal, hub & back struts
●Galvanized stainless steel fasteners
●Strong structure and high wind resistance
DATASHEET:Starwin 3.7m Ka Band Antenna
Starwin 3.7m Ka Band Antenna Datasheet
