BRIEF INTRODUCTION:

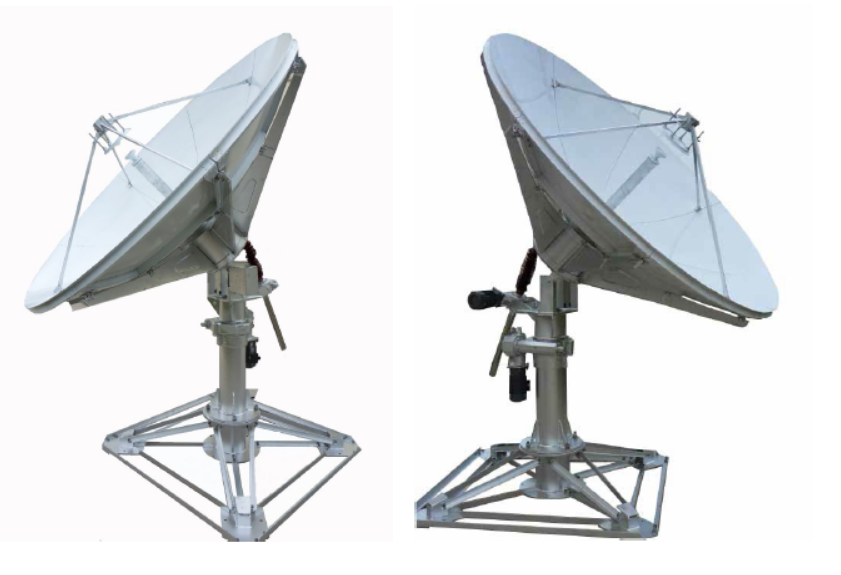

Starwin 2.4 m Ka band ring focus antenna is designed for Ka band transmit and receive
operation.
The precision reflector is constructed from stretch formed aluminum panels eight pcs,
supported by strong back structures and hub, no need for field alignment.
The Az/El king post pedestal is made of hot dip zinc steel for good corrosion resistance. The
wide moving range and fine drive performance, ensure the pointing and tracking accuracy.
Equipped with special designed wide Ka-band feed assemblies.
Also supply limit switches, foundation hardware kit and required packing.
DETAIL:
●Meets or exceeds CCIR 580 and INTELSAT Requirements
●Wide azimuth range 0-360°
●Wider Ka band working frequency
●Hot dip zinc steel pedestal, hub & back struts
●Galvanized stainless steel fasteners
●Survival 125mph high wind resistance
DATASHEET:Starwin 2.4m Ka Band Antenna
Starwin 2.4m Ka Band Antenna Datasheet
