BRIEF INTRODUCTION:
1. Feed subsystem: Ring focus reflector (Carbon fiber), Ku Band feed horn, OMT, Filter and so on.
2. Antenna control subsystem: Azimuth, Elevation, Polarization motor, angle sensor, ATPC control board and so on.
3. Digital tracking subsystem: Beacon receiver, GPS, DVB, WiFi module and so on.
DETAIL:
1. The main support system of the antenna is carbon fiber material. The system realizes 60%carbon fiber, the material is more stable, the weight is lighter, the strength is higher, and it ismore convenient for portable use.
2. The antenna has the features of low sidelobe and high gain, which can meet the technicalrequirements of satellite companies.
3. The antenna system is equipped with GPS positioning system, position detection system,polarization adjustment system, servo drive system, automatic protection system, highperformance satellite beacon receiving system, Wi-Fi wireless control, intelligent controlmanagement software and so on.
4. “One-Key” operation, completion of positioning, deployment, tracking satellites automatically in3 minutes.
5. Under special circumstances, when GPS can not be used, the satellite longitude and latitude can be input manually, and the pointing can be completed quickly.
6. It provides three automatic, electrical and manual control modes to facilitate emergencyoperation in various environments.
7. The antenna system is powered by a wide range of AC220V and can be customized accordingto user requirements.

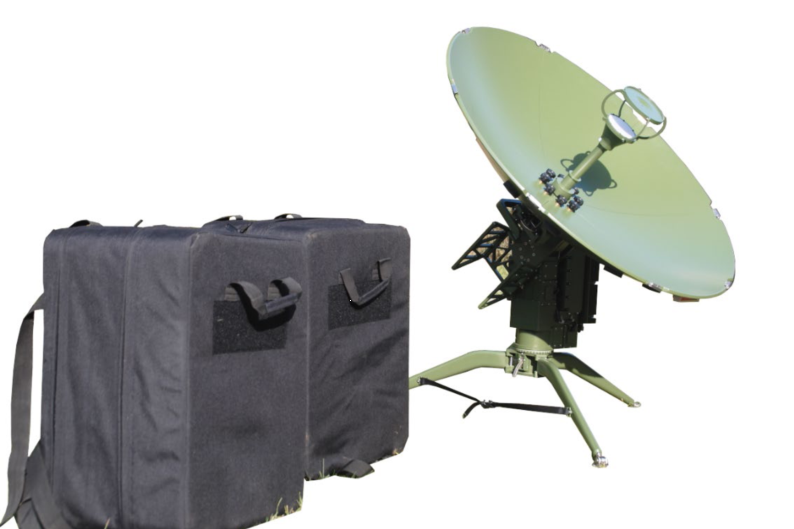

Starwin 1.2m Ku Band Auto Flyaway Antenna Datasheet
