BRIEF INTRODUCTION:
The Starwin 0.8m compact auto flyaway antenna is a backpack Ka band satellitecommunication terminal for HTS (High-throughput Satellite). This system has thecharacteristics of light weight, easy and reliable operation, complete VSAT application,integration and so on.

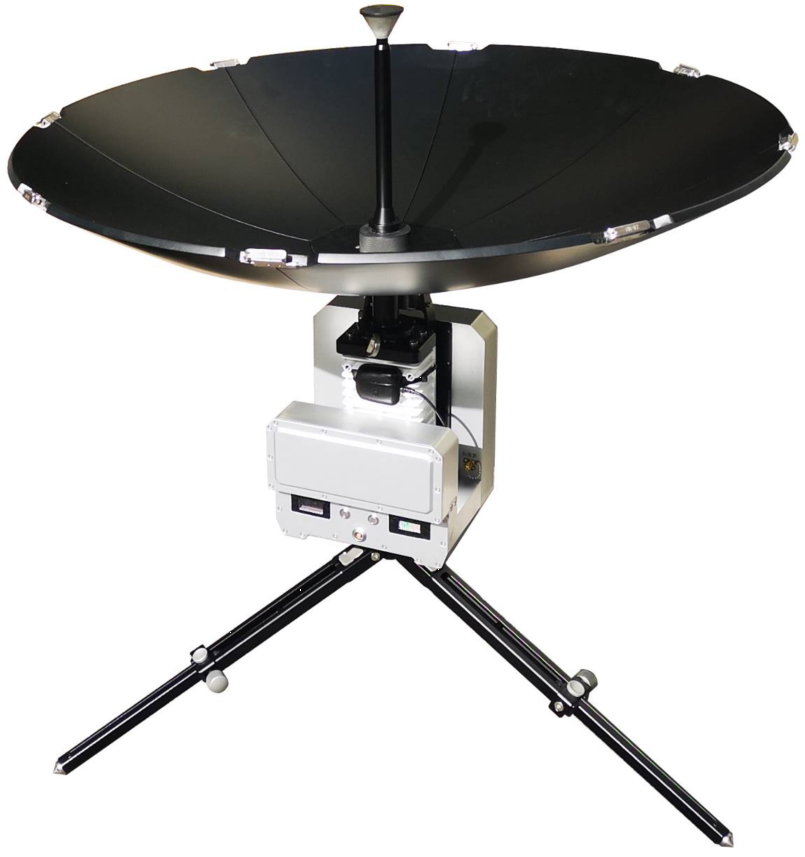

The system is equipped with a Ka-band prime focus carbon fiber parabolic antenna, whichequivalent aperture is 0.75m, and an efficient dielectric feed system, and highly integrated2.5W or 4W Transceiver, SkyEdge II-c Capricorn-4 satellite terminal manufactured byGilat Company, 310Wh military products of lithium batteries (optional), GPS-Beidoudual-mode positioning and high-power WiFi equipment. Through the patented servo control system, automatic star searching is realized.
DETAIL:
1. Integrated Applications: The 0.75m Ka band antenna, 2.5/4W Transceiver, SkyEdgeII Capricorn-4 satellite terminal, lithium battery (optional) power supply and auto servocontrol system is effectively integrated into a whole to realize a complete VSATsatellite communication earth station function, which greatly simplifies the operationcomplexity and provides more superior reliability.
2. Ease of operation: The system adopts two control modes of “One-Key” and smartphone web control, combined with patented servo control technology, to realize theautomatic work of one key satellite searching;
3. Equipment Management: The antenna control system establishes real-timecommunication with SkyEdge II Capricorn-4 terminal through Open AMIP and Gilatprivate protocol, It provides the necessary GPS information for the skyedge IIcapricorn-4 terminal, and realizes the visual display of beam and communicationquality information on the web page, which greatly facilitates the use of users andreduces the cost of the whole machine;(Base on the Modem)
4. New beam blind scanning: This is an optional function. When the antenna isequipped with dual-mode beacon function, the antenna system will have the simplest parameter configuration when any new beam works and the function of automaticblind scanning into the network;
5. WiFi Access: The antenna system can also built-in high-power WiFi and wired RJ45interfaces to facilitate the access of various business terminals, convenient access tovarious business terminals, WiFi coverage up to 50-250 meters;
6. Adaptive Power Supply: The system supports adaptive operation of 90-260 VACand internal lithium battery (310Wh battery, optional) power supply modes, which canbe used globally, the Lithium battery can support full-load emergency work for 3hours;
7. Super Portability: The system adopts single-box storage, and the backpack isspecially designed to support long-distance carrying and can effectively protect theinternal equipment. the carrying weight of the whole machine is less than 14.5 kg;
DATASHEET: Starwin 0.8m Ka Band Compact Flyaway Antenna
Starwin 0.8m Ka Band Compact Flyaway Antenna Datasheet
