BRIEF INTRODUCTION:

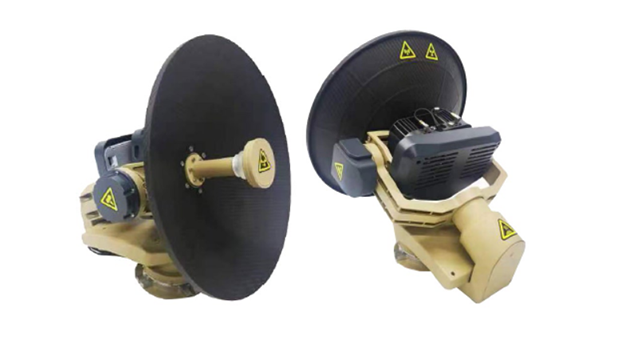

Starwin SW035 Ku/Ka band airborne antenna is widely used on various UAV (Unmanned Aerial Vehicle) platforms to enhance team mobility and stay informed of on-site conditions; It is also can be used in emergency command and communication departments such as public security, fire protection, transportation and safety supervision, to improve the ability of relevant departments to deal with emergencies such as flood fighting and emergency rescue, earthquake rescue, forest fire alarm, fire protection, and citizen protection.
DETAIL:
●Support Ku and Ka band.
●Utilizing hat-shaped feed design for higher efficiency and better side lobe characteristics.
●Fast initial pointing time to satellite: GPS/Beidou GNSS module cold start positioning time to satellite <90s, hot start (or manual input) <60s.
●High tracking accuracy: Tracking error <0.2dB (RMS) without occlusion.
●Excellent Tracking Stability: The azimuth adopts a closed-loop stability algorithm, which can accurately track the satellite even during rapid turning or "S" move.
●Fast occlusion recovery time: Occlusion time <5min, recovery time <3s; Occlusion time <20min, recovery time <5s.
DATASHEET:
Starwin 0.35m Airborne Antenna Datasheet
