BRIEF INTRODUCTION:

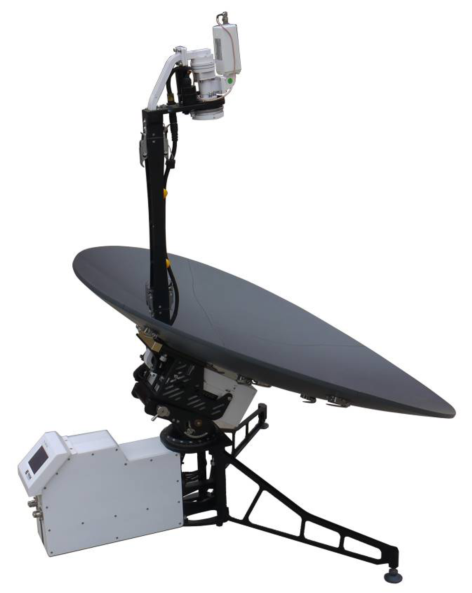

Starwin 1.0m Ku band intelligent assistance antenna is a new generation of backpack satellite communication system. This system has the characteristics of light weight, easy and reliable operation, complete VSAT application, integration and so on. It is mainly designed for users of simple Internet applications such as scientific research exploration, network media, emergency communication, etc.
This antenna system is equipped with a Ku-band single offset carbon fiber parabolic antenna, which equivalent aperture is 1.0m, and it adopts the design of short focal length is adopted. At the same time, the system is equipped with three-axis angle sensor, GPS automatic positioning, beacon level display, automatic polarization rotation and locking indication, acoustooptic prompt and so on. With the help of digital indication and acoustooptic prompt and so on, it can realize more fast and accurate manual satellite searching. Its operation is simple, convenient, efficient and reliable, and the speed of satellite searching is much faster than that of automatic satellite searching products.
DETAIL:
1. Super Portability: The system adopts single-box storage, and the total weight is less than 14kg (Exclude the BUC and LNB) in working state, the carrying weight is less than 18kg (Exclude the BUC and LNB). The backpack is compact, safe and reliable, and can support long-distance carrying.
2. Super Simplicity: With the help of intelligent assistant systems such as triaxial angle sensor, auto polarization rotation, and OLED touch screen, fast and accurate satellite searching is realized, compared with fully automatic and manual stations, this system greatly shortens the time of satellite searching and improves the correctness and accuracy of satellite searching.
3. Excellent Wind - Resistant Performance: Adopts the subversive reflector connection forms, with a very low working height and an optimized center of gravity, and reduced windward area, which ensures that the antenna system has superior structural wind- resistant stability performance.
4. Active Heat Dissipation: In order to meet the working temperature requirement of the terminal board and reduce the internal temperature of the cabinet, the cabinet adopts the forced heat dissipation design, which forms the air flow passage inside, and adopts the anti-raining design at the inlet and outlet.
5. VSAT Application: The system reserved a separate space for installing business terminals such as Modem, Linkstar or iPstar terminal boards can be built-in, thus providing the possibility of realizing highly integrated stand-alone VSAT system,
6. Strong Wading Ability: The system supports 10 cm wading capacity and can effectively respond to the complex environment of emergency site.
7. Local touch screen: The system is equipped with the local OLED touch screen, which can monitor the working status of antenna, BUC and IDU in real time locally without any other terminal intervention (Spectrum analyzer and Satellite finder), thus greatly optimizing the working efficiency of the human-machine interface.
8. BUC Monitoring: The interface of the antenna control system is equipped with BUC monitoring function area, which can conveniently check the real-time working state of BUC, such as output power, working temperature, 10MHz locking and other parameters, and it can control BUC.
9. Wide-Range EIRP: The system is equipped with Ku-band BUC of 2~40W, and EIRP can reach 44~57dBW, which can realize medium capacity communication under the small aperture antenna.
10. Full-Band Operation: The uplink frequency range is 10.95~12.75 GHz, and the downlink frequency range is 13.75~14.5 GHz, which has wide applicability.
11. Full Voltage Operation: The system uses 90 ~ 264 VAC power supply mode, which can be used globally, and can provide stable and reliable power supply for BUC, LNB, Modem and other equipment.
